molex SL 5-pin cables & pigtails, built to your length.
50-57-9405 receptacle · 70107-0004 plug · genuine Molex parts · priced instantly · free 2-day shipping.
Price
the price, before you ask for it.
| build | qty 1, each | qty 10, each | qty 50, each | configure |
|---|---|---|---|---|
| cable, 12″ | $40.00order minimum | $16.65 | $15.78 | configure |
| cable, 24″ | $40.00order minimum | $20.07 | $19.02 | configure |
| pigtail, 12″ flying leads | $40.00order minimum | $12.64 | $11.98 | configure |
| pigtail, 12″ leads with ferrules | $40.00order minimum | $16.02 | $15.17 | configure |
each · free UPS 2-day shipping · $40 order minimum (a smaller order is charged $40) · ships in 8 business days. these are example builds: change the length, pinout and colors in the configurator and it prices the result the same way.
Drawing
the 12″ cable, pin for pin.
pin 1 to pin 1 straight through, 22 AWG in the standard color order. the configurator draws the same diagram for your own configuration, and exports it as a PDF.
Parts
what it's built from.

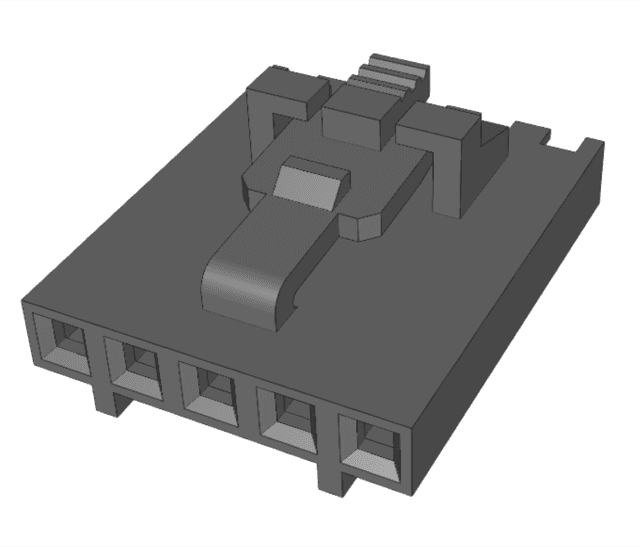

| receptacle housing | 50-57-9405 | also written 50579405 |
|---|---|---|
| plug housing | 70107-0004 | also written 701070004 |
| pin contact — standard (tin) | 16-02-0107 | 22–24 AWG |
| socket contact — standard (tin) | 16-02-0086 | 22–24 AWG |
| pin contact — gold-plated | 16-02-0081 | 22–24 AWG |
| socket contact — gold-plated | 16-02-0087 | 22–24 AWG |
| wire | UL1007 | 22, 24 AWG |
part numbers link to Digi-Key, where we buy them — genuine Molex, new, traceable.
Pitch
2.54 mm
Wire
22–24 AWG
Length
5–48 in
Lead time
8 business days
Questions
about the 5-pin molex SL.
- can I order just one 5-pin cable?
- yes, there's no minimum quantity, but there is a $40 order minimum. one 12″ 5-pin cable comes to $17.53, so an order of just that cable is $40; add more cables and the minimum is covered. shipping is free (UPS 2-day). prices drop at 10 and 50 units.
- which half holds the pins?
- the 50-57-9405 receptacle holds socket contacts, and the 70107-0004 plug holds pin contacts. every contact is crimped with Molex's own specified tooling.
- what wire gauges and lengths?
- 22, 24 AWG UL1007 hook-up wire, any length from 5″ to 48″. the prices above are at 22 AWG.
- how fast does it ship?
- it's built and shipped in 8 business days, then goes out UPS 2-day.
more in the FAQ, including returns (custom cables are non-returnable; defects replaced).
