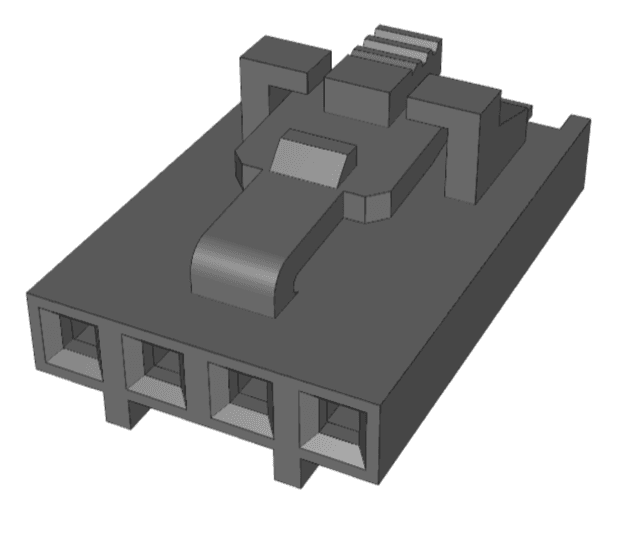

molex SL cables & pigtails, built to your length.
2.54mm pitch, latching. compact signal connections, wire-to-wire or onto a 0.1" header. genuine Molex parts, 2, 3, 4, 5, 6, 8 pins, priced instantly, free 2-day shipping.
Sizes
every size we build, with its parts and price.
| size | receptacle | plug | 12 in (305 mm) cable, qty 10, each | qty 50, each |
|---|---|---|---|---|
| 2-pin | 50-57-9402 | 70107-0001 | $7.87 | $7.45 |
| 3-pin | 50-57-9403 | 70107-0002 | $10.68 | $10.12 |
| 4-pin | 50-57-9404 | 70107-0003 | $13.43 | $12.73 |
| 5-pin | 50-57-9405 | 70107-0004 | $16.70 | $15.82 |
| 6-pin | 50-57-9406 | 70107-0005 | $20.10 | $19.04 |
| 8-pin | 50-57-9408 | 70107-0007 | $26.18 | $24.80 |
12 in (305 mm) cable at 22 AWG · free UPS 2-day shipping · $40 order minimum. each size page has single-cable and pigtail prices, the drawing and the full parts list.
landing the loose ends in a terminal block? molex SL to ferrules prices every size with a crimped ferrule on each flying lead.
guides: current by wire gauge · ferrule size chart.
Contacts
the contacts we crimp.
| finish | pin | socket | wire |
|---|---|---|---|
| standard (tin) | 16-02-0107 | 16-02-0086 | 22–24 AWG |
| gold-plated | 16-02-0081 | 16-02-0087 | 22–24 AWG |
every contact is crimped with Molex's own specified tooling. part numbers link to Digi-Key.
Pitch
2.54 mm
Wire
22–24 AWG
Length
5–48 in (127–1219 mm)
Lead time
8 business days
