wire leads, cut and crimped to your length.
loose UL1007 wires, 1 to 10 to a bundle, each end bare, ferruled or ring-terminated — no connector. priced instantly · free 2-day shipping.
Price
the price, before you ask for it.
| build | qty 1, each | qty 10, each | qty 50, each | configure |
|---|---|---|---|---|
| 1 wire, 12 in (305 mm), ferrules both ends | $40.00order minimum | $4.01 | $3.80 | configure |
| 1 wire, 12 in (305 mm), ferrule one end, bare the other | $40.00order minimum | $4.00order minimum | $3.23 | configure |
| 1 wire, 12 in (305 mm), No. 8 ring terminals both ends | $40.00order minimum | $5.81 | $5.51 | configure |
| 1 wire, 12 in (305 mm), ferrule to No. 8 ring terminal | $40.00order minimum | $4.91 | $4.65 | configure |
| 4-wire bundle, 12 in (305 mm), ferrules both ends | $40.00order minimum | $13.19 | $12.49 | configure |
each · free UPS 2-day shipping · $40 order minimum (a smaller order is charged $40) · ships in 5 business days. these are example builds: change the length, the wire count, the ends and the colors in the configurator and it prices the result the same way.
at 20 AWG, the price is per bundle. ring terminals come in No. 4, No. 6, No. 8, No. 10, 1/4″, 5/16″, 3/8″; No. 8 is shown.
Drawing
a 4-wire bundle, end to end.
20 AWG in the standard color order, a orange ferrule on each end of every wire. the configurator draws your own bundle as you build it.
Ends
what each gauge can end in.
| wire | ferrule | ring terminals |
|---|---|---|

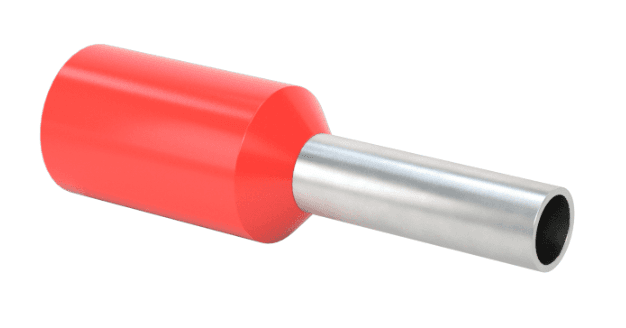

| 18 AWG | red · 7950K71 | No. 4 to 3/8″ |
| 20 AWG | orange · 7950K161 | No. 4 to 3/8″ |
| 22 AWG | gray · 7950K14 | No. 4 to 3/8″ |
| 24 AWG | aqua · 7950K45 | not offered |
ferrule and ring terminal part numbers link to McMaster-Carr, where we buy them. every size, part and price: ferrule leads · ring terminal leads.
Wire
18–24 AWG
UL1007
Wires
1–10 per bundle
Length
5–48 in (127–1219 mm)
Lead time
5 business days
Questions
about wire leads.
- what's a wire lead here?
- a length of UL1007 hook-up wire with nothing on it but its ends: each end is left bare, crimped into a ferrule, or crimped into a ring terminal. there's no connector housing — for one of those, see the connector-to-ferrules pages.
- can the two ends be different?
- yes. end A and end B are chosen separately: a ferrule on one end and a ring terminal on the other, a ferrule on one end and bare on the other, or the same on both. at least one end has to be ferruled or ring-terminated.
- which gauges take which ends?
- ferrules fit every gauge we offer here (18, 20, 22, 24 AWG). ring terminals cover 18–22 AWG; at 24 AWG it's ferrules only.
- can I order just one?
- yes, there's no minimum quantity, but there is a $40 order minimum. one 20 AWG wire, 12 in (305 mm), with a ferrule on each end, comes to $4.22, so an order of just that is $40. at 10 it's $4.01 each and 50 it's $3.80 each. shipping is free (UPS 2-day).
- how many wires, and how long?
- 1 to 10 wires per bundle, all the same length, anything in 5–48 in (127–1219 mm). every wire in a bundle gets the same treatment on each end, and prices are per bundle.
- how fast does it ship?
- wire leads are built and shipped in 5 business days, then go out UPS 2-day.
more in the FAQ, including returns (custom cables are non-returnable; defects replaced).
