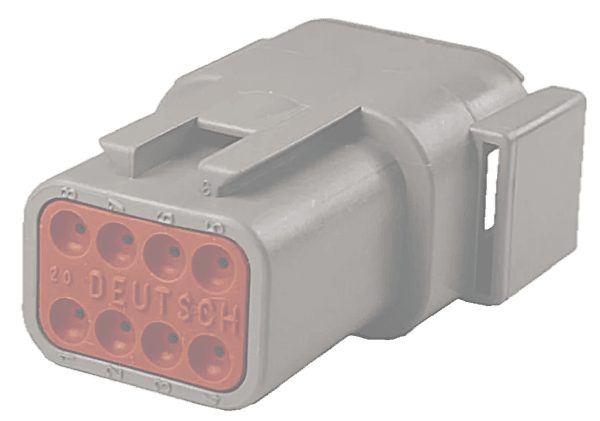

deutsch DTM to ferrules, built to your length.
a deutsch DTM connector on one end and a crimped ferrule on every loose lead at the other, ready for a terminal block, a PLC or a DIN-rail module. genuine Deutsch parts · priced instantly · free 2-day shipping.
Price
every size, with ferrules, priced.
| build | qty 1, each | qty 10, each | qty 50, each | configure |
|---|---|---|---|---|
| 2-pin · DTM04-2P receptacle, 12 in (305 mm) leads | $40.00order minimum | $10.32 | $9.77 | configure |
| 3-pin · DTM04-3P receptacle, 12 in (305 mm) leads | $40.00order minimum | $14.81 | $14.03 | configure |
| 4-pin · DTM04-4P receptacle, 12 in (305 mm) leads | $40.00order minimum | $18.89 | $17.89 | configure |
| 6-pin · DTM04-6P receptacle, 12 in (305 mm) leads | $40.00order minimum | $28.35 | $26.86 | configure |
| 8-pin · DTM04-08PA receptacle, 12 in (305 mm) leads | $40.00order minimum | $34.71 | $32.89 | configure |
| 12-pin · DTM04-12PA receptacle, 12 in (305 mm) leads | $52.42 | $49.80 | $47.18 | configure |
each · free UPS 2-day shipping · $40 order minimum (a smaller order is charged $40) · ships in 12 business days. these are example builds: change the length, pinout and colors in the configurator and it prices the result the same way.
Drawing
the 4-pin to ferrules, pin for pin.
a flying lead off every pin, 20 AWG in the standard color order, each ending in a orange 20 AWG ferrule. the configurator draws the same diagram for your own pinout and exports it as a PDF.
Ferrules
the ferrule follows the gauge.
| wire | ferrule color | part number |
|---|---|---|
| 20 AWG | orange | 7950K161 |
collar colors are McMaster-Carr's, not a standard color code, so go by this table rather than a color chart (the ferrule size chart sets them beside the standard codes). part numbers link to McMaster-Carr, where we buy them. the connector parts for each size are on its own page.
Connector
2–12 pin
Wire
20 AWG
Length
5–48 in (127–1219 mm)
Lead time
12 business days
Questions
about deutsch DTM to ferrules.
- can I order just one?
- yes, there's no minimum quantity, but there is a $40 order minimum. one 2-pin deutsch DTM with 12 in (305 mm) ferruled leads comes to $10.86, so an order of just that is $40; add more and the minimum is covered. shipping is free (UPS 2-day). prices drop at 10 and 50 units.
- which ferrule goes on each lead?
- the ferrule follows the wire gauge, and its collar color is McMaster-Carr's, not a standard color code: 20 AWG takes orange (7950K161). the prices above are at 20 AWG, so orange.
- can I put ferrules on only some of the leads?
- yes. the prices above put one on every lead. in the configurator's rewire panel each loose lead is either a plain flying lead or "flying lead + ferrule", and you pay only for the ferrules you use.
- how is each end made?
- both ends are crimped: the Deutsch DTM contacts with Deutsch's own specified tooling, and a ferrule on each loose lead.
- can the connector end be a plug instead?
- yes, on the sizes where we stock the plug (2-pin, 4-pin, 6-pin, 8-pin, 12-pin). the prices above are for the receptacle; switch the gender in the configurator and it reprices.
- what wire gauges and lengths?
- 20 AWG UL1007 hook-up wire with a ferrule to match, any length, 5–48 in (127–1219 mm). the prices above are at 20 AWG.
- how fast does it ship?
- it's built and shipped in 12 business days, then goes out UPS 2-day.
more in the FAQ, including returns (custom cables are non-returnable; defects replaced).
