bootlace ferrule wire leads, cut to your length.

UL1007 hook-up wire with a crimped ferrule on one end or both, 18–24 AWG, for screw and spring terminal blocks. 1 to 10 wires to a bundle · priced instantly · free 2-day shipping.

configure a ferrule leadmixed ends

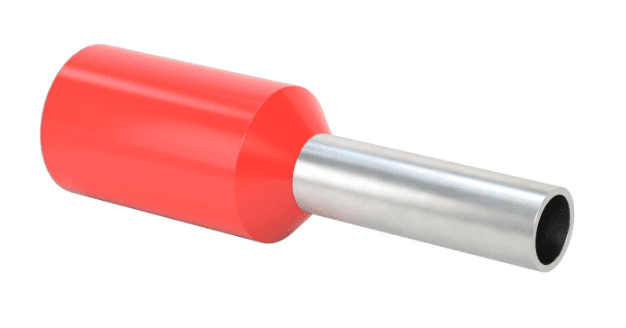

ferrule

Price

every gauge, priced.

price each, by quantity, shipping free
buildqty 1, eachqty 10, eachqty 50, eachconfigure
18 AWG, 1 wire, 12 in (305 mm), ferrules both ends$40.00order minimum$4.29$4.07configure
20 AWG, 1 wire, 12 in (305 mm), ferrules both ends$40.00order minimum$4.01$3.80configure
22 AWG, 1 wire, 12 in (305 mm), ferrules both ends$40.00order minimum$4.00order minimum$3.73configure
24 AWG, 1 wire, 12 in (305 mm), ferrules both ends$40.00order minimum$4.03$3.82configure
20 AWG, 1 wire, 24 in (610 mm), ferrules both ends$40.00order minimum$4.92$4.66configure

each · free UPS 2-day shipping · $40 order minimum (a smaller order is charged $40) · ships in 5 business days. these are example builds: change the length, the wire count, the ends and the colors in the configurator and it prices the result the same way.

the price is per bundle; these rows are one wire each.

Drawing

a 4-wire bundle, ferrules both ends.

20 AWG in the standard color order, so orange ferrules. the configurator draws your own bundle as you build it.

12 in (305 mm)

Parts

the ferrule follows the gauge.

ferrules by wire gauge
wireferrule colorpart number
18 AWGred7950K71
20 AWGorange7950K161
22 AWGgray7950K14
24 AWGaqua7950K45

collar colors are McMaster-Carr's, not a standard color code, so go by this table rather than a color chart (the ferrule size chart sets them beside the standard codes). part numbers link to McMaster-Carr, where we buy them.

Wire

18–24 AWG

UL1007

Wires

1–10 per bundle

Length

5–48 in (127–1219 mm)

Lead time

5 business days

Questions

about ferrule wire leads.

which ferrule goes on which wire?
the ferrule follows the wire gauge, and its collar color is McMaster-Carr's, not a standard color code: 18 AWG takes red (7950K71), 20 AWG takes orange (7950K161), 22 AWG takes gray (7950K14), 24 AWG takes aqua (7950K45). it's applied automatically; there's no ferrule to pick.
ferrule on one end, or both?
either. the other end can be a ferrule too, bare, or a ring terminal (18–22 AWG only). the prices above have a ferrule on both ends.
can I order just one?
yes, there's no minimum quantity, but there is a $40 order minimum. one 18 AWG wire, 12 in (305 mm), with a ferrule on each end, comes to $4.52, so an order of just that is $40. at 10 it's $4.29 each and 50 it's $4.07 each. shipping is free (UPS 2-day).
how many wires, and how long?
1 to 10 wires per bundle, all the same length, anything in 5–48 in (127–1219 mm). every wire in a bundle gets the same treatment on each end, and prices are per bundle.
how fast does it ship?
wire leads are built and shipped in 5 business days, then go out UPS 2-day.

more in the FAQ, including returns (custom cables are non-returnable; defects replaced).
