D-sub to ferrules, built to your length.

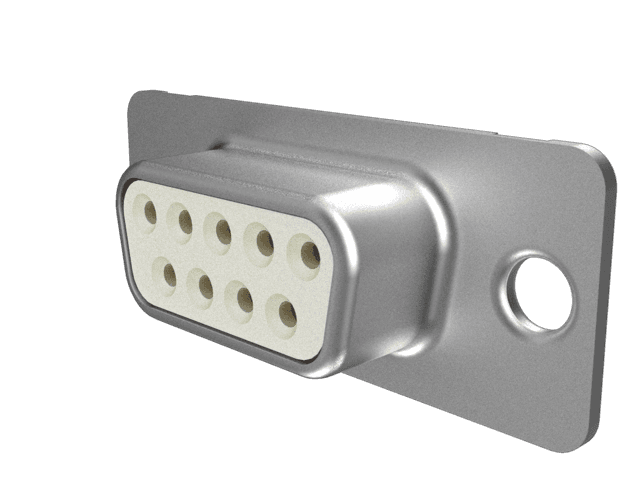

a D-sub connector on one end and a crimped ferrule on every loose lead at the other, ready for a terminal block, a PLC or a DIN-rail module. genuine Amphenol parts · priced instantly · free 2-day shipping.
Price
every size, with ferrules, priced.
| build | qty 1, each | qty 10, each | qty 50, each | configure |
|---|---|---|---|---|
| DB9 · DE09S064TLF receptacle, 12 in (305 mm) leads | $40.00order minimum | $32.37 | $30.66 | configure |
| DB15 · DA15S064TLF receptacle, 12 in (305 mm) leads | $52.99 | $50.34 | $47.69 | configure |
each · free UPS 2-day shipping · $40 order minimum (a smaller order is charged $40) · ships in 10 business days. these are example builds: change the length, pinout and colors in the configurator and it prices the result the same way.
Drawing
the DB9 to ferrules, pin for pin.
a flying lead off every pin, 22 AWG in the standard color order, each ending in a gray 22 AWG ferrule. the configurator draws the same diagram for your own pinout and exports it as a PDF.
Ferrules
the ferrule follows the gauge.
| wire | ferrule color | part number |
|---|---|---|
| 20 AWG | orange | 7950K161 |
| 22 AWG | gray | 7950K14 |
| 24 AWG | aqua | 7950K45 |
collar colors are McMaster-Carr's, not a standard color code, so go by this table rather than a color chart (the ferrule size chart sets them beside the standard codes). part numbers link to McMaster-Carr, where we buy them. the connector parts for each size are on its own page.
Connector
DB9, DB15
Wire
20–24 AWG
Length
5–48 in (127–1219 mm)
Lead time
10 business days
Questions
about D-sub to ferrules.
- can I order just one?
- yes, there's no minimum quantity, but there is a $40 order minimum. one DB9 D-sub with 12 in (305 mm) ferruled leads comes to $34.07, so an order of just that is $40; add more and the minimum is covered. shipping is free (UPS 2-day). prices drop at 10 and 50 units.
- which ferrule goes on each lead?
- the ferrule follows the wire gauge, and its collar color is McMaster-Carr's, not a standard color code: 20 AWG takes orange (7950K161), 22 AWG takes gray (7950K14), 24 AWG takes aqua (7950K45). the prices above are at 22 AWG, so gray.
- can I put ferrules on only some of the leads?
- yes. the prices above put one on every lead. in the configurator's rewire panel each loose lead is either a plain flying lead or "flying lead + ferrule", and you pay only for the ferrules you use.
- how is each end made?
- the D-sub end is soldered: the shell comes with solder-cup contacts built in, and each wire is soldered into its cup with lead-free solder. the ferrules on the loose ends are crimped.
- which hood is on the connector?
- plastic hood or metal hood, your choice in the configurator. the prices above are with the plastic hood hood; it's included and fitted on every connector, and each size's page has the hood part numbers.
- can the connector end be a plug instead?
- yes, on the sizes where we stock the plug (DB9, DB15). the prices above are for the receptacle; switch the gender in the configurator and it reprices.
- what wire gauges and lengths?
- 20, 22, 24 AWG UL1007 hook-up wire with a ferrule to match, any length, 5–48 in (127–1219 mm). the prices above are at 22 AWG.
- how fast does it ship?
- it's built and shipped in 10 business days, then goes out UPS 2-day.
more in the FAQ, including returns (custom cables are non-returnable; defects replaced).
