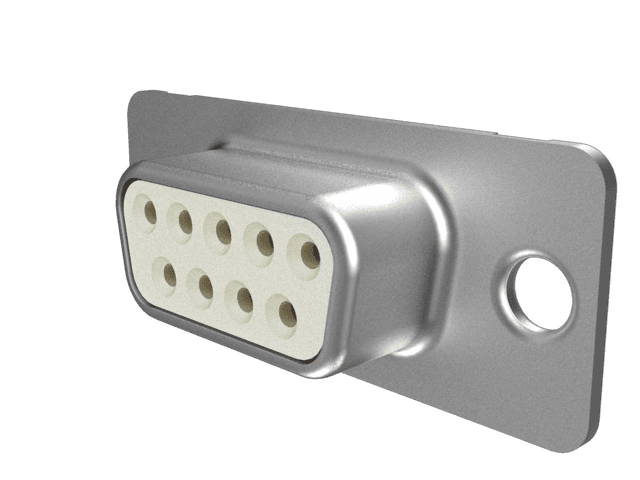

D-sub pigtails & cables, built to your length.
standard-density, solder cup. gold-flash contacts, tin-plated steel shell — serial, I/O and instrument cables. genuine Amphenol parts, 9, 15 pins, priced instantly, free 2-day shipping.
Sizes
every size we build, with its parts and price.
| size | receptacle | plug | 12 in (305 mm) cable, qty 10, each | qty 50, each |
|---|---|---|---|---|
| DB9 | DE09S064TLF | DE09P064TXLF | $36.90 | $34.96 |
| DB15 | DA15S064TLF | DA15P064TXLF | $54.91 | $52.02 |
12 in (305 mm) cable at 22 AWG · free UPS 2-day shipping · $40 order minimum. each size page has single-cable and pigtail prices, the drawing and the full parts list.
landing the loose ends in a terminal block? D-sub to ferrules prices every size with a crimped ferrule on each flying lead.
know what it's for? these open with the pinout already set: DB9 pigtail · DB9 custom pinout · CAN bus DB9 cable · RS-485 DB9 cable.
guides: current by wire gauge · ferrule size chart.
Pitch
2.77 mm
Wire
20–24 AWG
Length
5–48 in (127–1219 mm)
Lead time
10 business days
