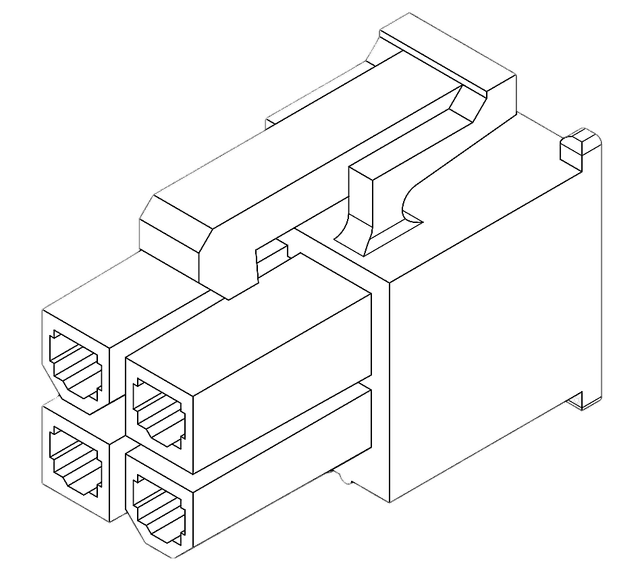

molex mini-fit jr. cables & pigtails, built to your length.
4.2mm pitch. higher-current power connections. genuine Molex parts, 2, 4, 6, 8, 10, 12 pins, priced instantly, free 2-day shipping.
Sizes
every size we build, with its parts and price.
| size | receptacle | plug | 12 in (305 mm) cable, qty 10, each | qty 50, each |
|---|---|---|---|---|
| 2-pin | 39-01-2020 | 39-01-3029 | $8.08 | $7.65 |
| 4-pin | 39-01-2040 | 39-01-3049 | $14.06 | $13.32 |
| 6-pin | 39-01-2060 | 39-01-3063 | $19.89 | $18.85 |
| 8-pin | 39-01-2080 | 39-01-3083 | $26.31 | $24.93 |
| 10-pin | 39-01-2100 | not stocked | $31.88 | $30.20 |
| 12-pin | 39-01-2120 | 39-01-3123 | $38.48 | $36.45 |
12 in (305 mm) cable at 20 AWG · free UPS 2-day shipping · $40 order minimum. each size page has single-cable and pigtail prices, the drawing and the full parts list.
landing the loose ends in a terminal block? molex mini-fit jr. to ferrules prices every size with a crimped ferrule on each flying lead.
guides: micro-fit vs mini-fit vs DTM · current by wire gauge · ferrule size chart.
Contacts
the contacts we crimp.
| finish | pin | socket | wire |
|---|---|---|---|
| standard (tin) | 39-00-0040 | 39-00-0038 | 18–24 AWG |
| gold-plated | 39-00-0075 | 39-00-0073 | 18–24 AWG |
every contact is crimped with Molex's own specified tooling. part numbers link to Digi-Key.
Pitch
4.2 mm
Wire
18–24 AWG
Length
5–48 in (127–1219 mm)
Lead time
8 business days
