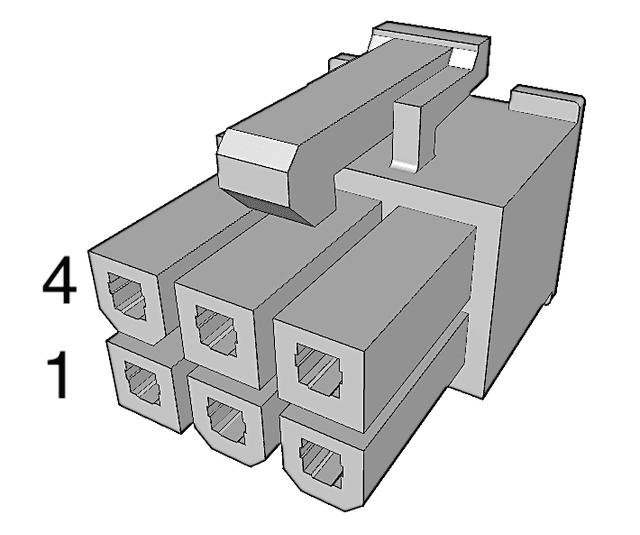

molex mini-fit jr. 6-pin cables & pigtails, built to your length.
39-01-2060 receptacle · genuine Molex parts · priced instantly · free 2-day shipping.
Price
the price, before you ask for it.
| build | qty 1, each | qty 10, each | qty 50, each | configure |
|---|---|---|---|---|
| cable, 12″ | $40.00order minimum | $19.76 | $18.72 | configure |
| cable, 24″ | $40.00order minimum | $25.23 | $23.90 | configure |
| pigtail, 12″ flying leads | $40.00order minimum | $15.94 | $15.10 | configure |
| pigtail, 12″ leads with ferrules | $40.00order minimum | $19.53 | $18.50 | configure |
each · free UPS 2-day shipping · $40 order minimum (a smaller order is charged $40) · ships in 8 business days. these are example builds: change the length, pinout and colors in the configurator and it prices the result the same way.
Drawing
the 12″ cable, pin for pin.
pin 1 to pin 1 straight through, 20 AWG in the standard color order. the configurator draws the same diagram for your own configuration, and exports it as a PDF.
Parts
what it's built from.
| receptacle housing | 39-01-2060 | also written 39012060 |
|---|---|---|
| pin contact — standard (tin) | 39-00-0040 | 18–24 AWG |
| socket contact — standard (tin) | 39-00-0038 | 18–24 AWG |
| pin contact — gold-plated | 39-00-0075 | 18–24 AWG |
| socket contact — gold-plated | 39-00-0073 | 18–24 AWG |
| wire | UL1007 | 18, 20, 22, 24 AWG |
part numbers link to Digi-Key, where we buy them — genuine Molex, new, traceable.
Pitch
4.2 mm
Wire
18–24 AWG
Length
5–48 in
Lead time
8 business days
Questions
about the 6-pin molex mini-fit jr..
- can I order just one 6-pin cable?
- yes, there's no minimum quantity, but there is a $40 order minimum. one 12″ 6-pin cable comes to $20.80, so an order of just that cable is $40; add more cables and the minimum is covered. shipping is free (UPS 2-day). prices drop at 10 and 50 units.
- which half holds the pins?
- the 39-01-2060 receptacle holds socket contacts. every contact is crimped with Molex's own specified tooling.
- is the 6-pin plug available?
- not right now — we don't stock the 6-pin plug, so this size is built as a receptacle pigtail or a receptacle-to-receptacle cable.
- what wire gauges and lengths?
- 18, 20, 22, 24 AWG UL1007 hook-up wire, any length from 5″ to 48″. the prices above are at 20 AWG.
- how fast does it ship?
- it's built and shipped in 8 business days, then goes out UPS 2-day.
more in the FAQ, including returns (custom cables are non-returnable; defects replaced).
