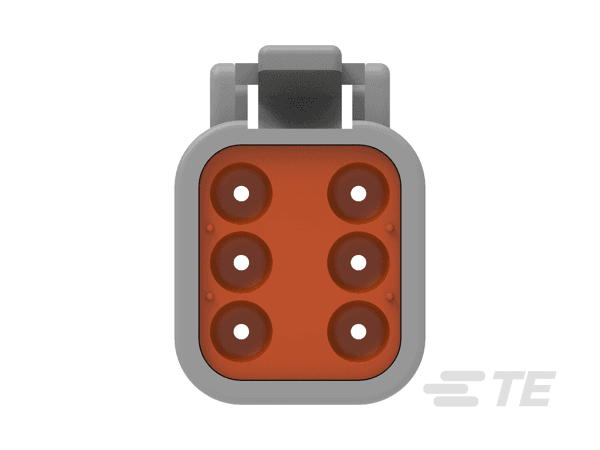

deutsch DTM 6-pin pigtails & cables, built to your length.
DTM04-6P receptacle · DTM06-6S plug · genuine Deutsch parts · priced instantly · free 2-day shipping.
Price
the price, before you ask for it.
| build | qty 1, each | qty 10, each | qty 50, each | configure |
|---|---|---|---|---|
| cable, 12″ | $40.18 | $38.17 | $36.16 | configure |
| cable, 24″ | $45.94 | $43.64 | $41.35 | configure |
| pigtail, 12″ flying leads | $40.00order minimum | $24.76 | $23.45 | configure |
| pigtail, 12″ leads with ferrules | $40.00order minimum | $28.35 | $26.86 | configure |
each · free UPS 2-day shipping · $40 order minimum (a smaller order is charged $40) · ships in 12 business days. these are example builds: change the length, pinout and colors in the configurator and it prices the result the same way.
Drawing
the 12″ cable, pin for pin.
pin 1 to pin 1 straight through, 20 AWG in the standard color order. the configurator draws the same diagram for your own configuration, and exports it as a PDF.
Parts
what it's built from.
| receptacle housing | DTM04-6P | |
|---|---|---|
| plug housing | DTM06-6S | |
| receptacle wedgelock | WM-6P | included |
| plug wedgelock | WM-6S | included |
| pin contact — standard (nickel) | 0460-202-20141 | 20–20 AWG |
| socket contact — standard (nickel) | 0462-201-20141 | 20–20 AWG |
| wire | UL1007 | 20 AWG |
part numbers link to Digi-Key, where we buy them — genuine Deutsch, new, traceable.
Wire
20 AWG
Length
5–48 in
Lead time
12 business days
Questions
about the 6-pin deutsch DTM.
- can I order just one 6-pin cable?
- yes, there's no minimum quantity. one 12″ 6-pin cable is $40.18, and shipping is free (UPS 2-day). the order minimum is $40. prices drop at 10 and 50 units.
- which half holds the pins?
- the DTM04-6P receptacle holds pin contacts, and the DTM06-6S plug holds socket contacts. every contact is crimped with Deutsch's own specified tooling.
- does the DTM04-6P need a wedgelock?
- yes. the wedgelock (WM-6P for the receptacle, WM-6S for the plug) is fitted on every connector and already included in the price.
- what wire gauges and lengths?
- 20 AWG UL1007 hook-up wire, any length from 5″ to 48″. the prices above are at 20 AWG.
- how fast does it ship?
- it's built and shipped in 12 business days, then goes out UPS 2-day.
more in the FAQ, including returns (custom cables are non-returnable; defects replaced).
