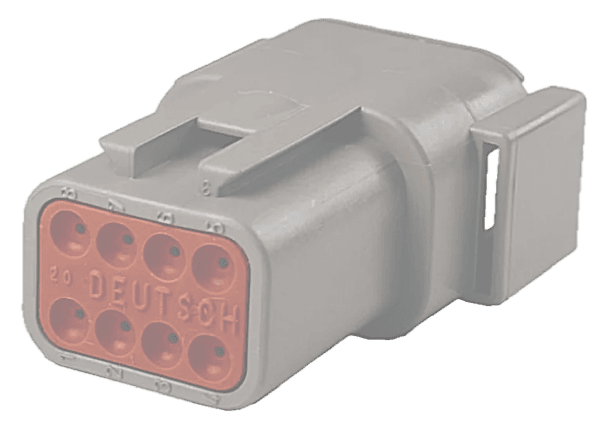

deutsch DTM pigtails & cables, built to your length.
environmentally sealed, miniature. compact signal connections. genuine Deutsch parts, 2, 3, 4, 6, 8, 12 pins, priced instantly, free 2-day shipping.
Sizes
every size we build, with its parts and price.
| size | receptacle | plug | 12 in (305 mm) cable, qty 10, each | qty 50, each |
|---|---|---|---|---|
| 2-pin | DTM04-2P | DTM06-2S | $14.12 | $13.37 |
| 3-pin | DTM04-3P | not stocked | $19.49 | $18.47 |
| 4-pin | — | DTM06-4S | $28.73 | $27.22 |
| 6-pin | — | DTM06-6S | $39.86 | $37.76 |
| 8-pin | DTM04-08PA | DTM06-08SA | $48.07 | $45.54 |
| 12-pin | DTM04-12PA | DTM06-12SA | $67.79 | $64.22 |
12 in (305 mm) cable at 20 AWG · free UPS 2-day shipping · $40 order minimum. each size page has single-cable and pigtail prices, the drawing and the full parts list.
landing the loose ends in a terminal block? deutsch DTM to ferrules prices every size with a crimped ferrule on each flying lead.
guides: DT vs DTM vs DTP · micro-fit vs mini-fit vs DTM · current by wire gauge · ferrule size chart.
Contacts
the contacts we crimp.
| finish | pin | socket | wire |
|---|---|---|---|
| standard (nickel) | 0460-202-20141 | 0462-201-20141 | 20 AWG |
the plug holds sockets and the receptacle holds pins. every contact is crimped with Deutsch's own specified tooling. part numbers link to Digi-Key.
Wire
20 AWG
Length
5–48 in (127–1219 mm)
Lead time
12 business days
