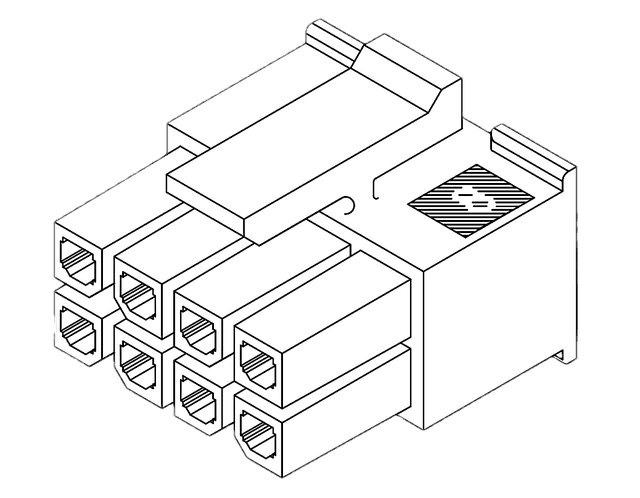

molex micro-fit 3.0 cables & pigtails, built to your length.
3.0mm pitch. compact signal & lower-current connections. genuine Molex parts, 2, 3, 4, 5, 6, 8, 10, 12 pins, priced instantly, free 2-day shipping.
Sizes
every size we build, with its parts and price.
| size | receptacle | plug | 12 in (305 mm) cable, qty 10, each | qty 50, each |
|---|---|---|---|---|
| 2-pin | 43025-0200 | 43020-0201 | $8.06 | $7.63 |
| 3-pin | 43645-0300 | 43640-0301 | $11.23 | $10.64 |
| 4-pin | 43025-0400 | 43020-0401 | $14.33 | $13.57 |
| 5-pin | 43645-0500 | 43640-0501 | $17.52 | $16.60 |
| 6-pin | 43025-0600 | 43020-0601 | $20.69 | $19.60 |
| 8-pin | 43025-0800 | 43020-0801 | $26.98 | $25.56 |
| 10-pin | 43025-1000 | 43020-1001 | $33.44 | $31.68 |
| 12-pin | 43025-1200 | 43020-1201 | $39.77 | $37.67 |
12 in (305 mm) cable at 20 AWG · free UPS 2-day shipping · $40 order minimum. each size page has single-cable and pigtail prices, the drawing and the full parts list.
landing the loose ends in a terminal block? molex micro-fit 3.0 to ferrules prices every size with a crimped ferrule on each flying lead.
guides: micro-fit vs mini-fit vs DTM · current by wire gauge · ferrule size chart.
Contacts
the contacts we crimp.
| finish | pin | socket | wire |
|---|---|---|---|
| standard (tin) | 43031-0001 | 43030-0001 | 20–24 AWG |
| gold-plated | 43031-0002 | 43030-0002 | 20–24 AWG |
every contact is crimped with Molex's own specified tooling. part numbers link to Digi-Key.
Pitch
3 mm
Wire
20–24 AWG
Length
5–48 in (127–1219 mm)
Lead time
8 business days
