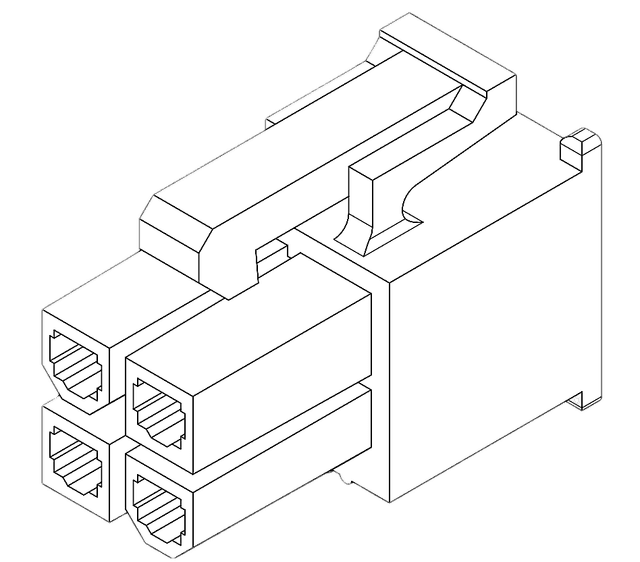

molex mini-fit jr. to ferrules, built to your length.
a molex mini-fit jr. connector on one end and a crimped ferrule on every loose lead at the other, ready for a terminal block, a PLC or a DIN-rail module. genuine Molex parts · priced instantly · free 2-day shipping.
Price
every size, with ferrules, priced.
| build | qty 1, each | qty 10, each | qty 50, each | configure |
|---|---|---|---|---|
| 2-pin · 39-01-2020 receptacle, 12 in (305 mm) leads | $40.00order minimum | $7.35 | $6.97 | configure |
| 4-pin · 39-01-2040 receptacle, 12 in (305 mm) leads | $40.00order minimum | $13.41 | $12.71 | configure |
| 6-pin · 39-01-2060 receptacle, 12 in (305 mm) leads | $40.00order minimum | $19.53 | $18.50 | configure |
| 8-pin · 39-01-2080 receptacle, 12 in (305 mm) leads | $40.00order minimum | $25.99 | $24.62 | configure |
| 10-pin · 39-01-2100 receptacle, 12 in (305 mm) leads | $40.00order minimum | $31.71 | $30.04 | configure |
| 12-pin · 39-01-2120 receptacle, 12 in (305 mm) leads | $40.00order minimum | $37.75 | $35.77 | configure |
each · free UPS 2-day shipping · $40 order minimum (a smaller order is charged $40) · ships in 8 business days. these are example builds: change the length, pinout and colors in the configurator and it prices the result the same way.
Drawing
the 4-pin to ferrules, pin for pin.
a flying lead off every pin, 20 AWG in the standard color order, each ending in a orange 20 AWG ferrule. the configurator draws the same diagram for your own pinout and exports it as a PDF.
Ferrules
the ferrule follows the gauge.
| wire | ferrule color | part number |
|---|---|---|
| 18 AWG | red | 7950K71 |
| 20 AWG | orange | 7950K161 |
| 22 AWG | gray | 7950K14 |
| 24 AWG | aqua | 7950K45 |
collar colors are McMaster-Carr's, not a standard color code, so go by this table rather than a color chart (the ferrule size chart sets them beside the standard codes). part numbers link to McMaster-Carr, where we buy them. the connector parts for each size are on its own page.
Connector
2–12 pin
Wire
18–24 AWG
Length
5–48 in (127–1219 mm)
Lead time
8 business days
Questions
about molex mini-fit jr. to ferrules.
- can I order just one?
- yes, there's no minimum quantity, but there is a $40 order minimum. one 2-pin molex mini-fit jr. with 12 in (305 mm) ferruled leads comes to $7.74, so an order of just that is $40; add more and the minimum is covered. shipping is free (UPS 2-day). prices drop at 10 and 50 units.
- which ferrule goes on each lead?
- the ferrule follows the wire gauge, and its collar color is McMaster-Carr's, not a standard color code: 18 AWG takes red (7950K71), 20 AWG takes orange (7950K161), 22 AWG takes gray (7950K14), 24 AWG takes aqua (7950K45). the prices above are at 20 AWG, so orange.
- can I put ferrules on only some of the leads?
- yes. the prices above put one on every lead. in the configurator's rewire panel each loose lead is either a plain flying lead or "flying lead + ferrule", and you pay only for the ferrules you use.
- how is each end made?
- both ends are crimped: the Molex Mini-Fit Jr. contacts with Molex's own specified tooling, and a ferrule on each loose lead.
- can the connector end be a plug instead?
- yes, on the sizes where we stock the plug (2-pin, 4-pin, 8-pin, 12-pin). the prices above are for the receptacle; switch the gender in the configurator and it reprices.
- what wire gauges and lengths?
- 18, 20, 22, 24 AWG UL1007 hook-up wire with a ferrule to match, any length, 5–48 in (127–1219 mm). the prices above are at 20 AWG.
- how fast does it ship?
- it's built and shipped in 8 business days, then goes out UPS 2-day.
more in the FAQ, including returns (custom cables are non-returnable; defects replaced).
