ring terminal wire leads, cut to your length.

UL1007 hook-up wire with a crimped ring terminal on one end or both, for No. 4 to 3/8″ studs, 18–22 AWG. 1 to 10 wires to a bundle · priced instantly · free 2-day shipping.

configure a ring terminal leadmixed ends

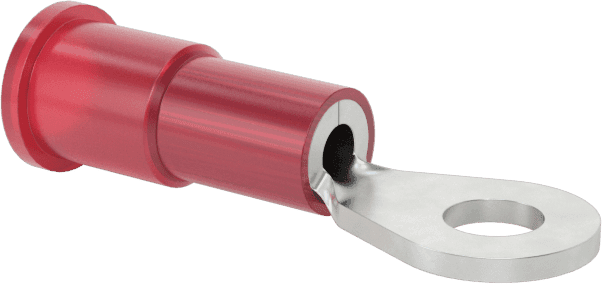

ring terminal

Price

every stud size, priced.

price each, by quantity, shipping free
buildqty 1, eachqty 10, eachqty 50, eachconfigure
No. 4 ring terminals both ends, 20 AWG, 12 in (305 mm)$40.00order minimum$6.14$5.81configure
No. 6 ring terminals both ends, 20 AWG, 12 in (305 mm)$40.00order minimum$5.59$5.29configure
No. 8 ring terminals both ends, 20 AWG, 12 in (305 mm)$40.00order minimum$5.81$5.51configure
No. 10 ring terminals both ends, 20 AWG, 12 in (305 mm)$40.00order minimum$5.60$5.31configure
1/4″ ring terminals both ends, 20 AWG, 12 in (305 mm)$40.00order minimum$5.89$5.58configure
5/16″ ring terminals both ends, 20 AWG, 12 in (305 mm)$40.00order minimum$6.82$6.46configure
3/8″ ring terminals both ends, 20 AWG, 12 in (305 mm)$40.00order minimum$6.61$6.26configure

each · free UPS 2-day shipping · $40 order minimum (a smaller order is charged $40) · ships in 5 business days. these are example builds: change the length, the wire count, the ends and the colors in the configurator and it prices the result the same way.

the price is per bundle; these rows are one wire each.

Drawing

No. 4 ring terminals on both ends.

20 AWG, 12 in (305 mm). the configurator draws your own bundle as you build it.

12 in (305 mm)

Parts

one terminal per stud size.

ring terminals by screw size
studwirepart number
No. 418–22 AWG7113K205
No. 618–22 AWG7113K451
No. 818–22 AWG7113K731
No. 1018–22 AWG7113K452
1/4″18–22 AWG7113K732
5/16″18–22 AWG7113K733
3/8″18–22 AWG7113K734

red nylon insulation over a brass sleeve on every size. part numbers link to McMaster-Carr, where we buy them.

Studs

No. 4 to 3/8″

18–22 AWG UL1007

Wires

1–10 per bundle

Length

5–48 in (127–1219 mm)

Lead time

5 business days

Questions

about ring terminal wire leads.

which screw size do I pick?
the size of the stud or screw the terminal goes over: No. 4, No. 6, No. 8, No. 10, 1/4″, 5/16″, 3/8″. each end picks its own size, and every wire in the bundle gets it.
which wire gauges?
18–22 AWG; every ring terminal here covers that range. at 24 AWG the ends are ferrules only. the prices above are at 20 AWG.
what are the terminals like?
every screw size ships with red nylon insulation over a brass sleeve.
ring terminal on one end, or both?
either. the other end can be a ring terminal of another size, a ferrule, or bare. the prices above have the same ring terminal on both ends.
can I order just one?
yes, there's no minimum quantity, but there is a $40 order minimum. one 20 AWG wire, 12 in (305 mm), with No. 4 ring terminals on both ends, comes to $6.46, so an order of just that is $40. at 10 it's $6.14 each and 50 it's $5.81 each. shipping is free (UPS 2-day).
how many wires, and how long?
1 to 10 wires per bundle, all the same length, anything in 5–48 in (127–1219 mm). every wire in a bundle gets the same treatment on each end, and prices are per bundle.
how fast does it ship?
wire leads are built and shipped in 5 business days, then go out UPS 2-day.

more in the FAQ, including returns (custom cables are non-returnable; defects replaced).
